26+ Idea Piping Design Pressure. Within industry, piping design. is a system of pipes used to convey fluids (liquids and gases) from one location to another. The engineering discipline of piping design. design studies the efficient transport of fluid. 26+ Idea Piping Design Pressure the following

Pressure Relief Valve Piping Design PIPING GUIDE Sumber : www.pipingguide.net

Piping Design Temperature And Pressure Student
11 02 2020 Piping Design Temperature And Pressure posted in Student Dear All I wish to know how to calculate the design pressure and temperature of piping Are they related to the conditions of upstream or downstream equipment Thanks

Pressure Piping Calculator per EN 13480 3 YouTube Sumber : www.youtube.com

epipingdesign pressure equipment design apps
epipingdesign com is the No 1 source for your pressure equipment design Our excel based apps are the best solution for your calculations Download now our PPC EN 13480 PPC ASME B31 1 and PPC ASME B31 3 piping apps Our apps are very simple user friendly and extremely easy to use

Convert Excel data to JSON format using VBA Collections Sumber : niraula.com

FAQs Pressure Piping FAQs ABSA the pressure
2 Q1 A new pressure piping system with an internal volume exceeding 500 L is to be installed Is it required to use registered fittings in such a pressure piping system 2 R1 Yes registered fittings are required in an unregistered pressure piping system Section 14 6 a of the PESR is an exemption from design registration only

Eadon Consulting Engineering Design Consultants Piping Sumber : www.eadonconsulting.co.uk

Definition of Design Pressure IADC Lexicon
Design Pressure Purchaser nominated maximum pressure to which a piping system is designed to operate at the nominated design temperature T des and for the nominated design life L des Note 1 to entry P des is typically considered as a sustained pressure though an additional P des occasional can also be nominated P des will be selected based on the maximum operating pressure plus a

Simple Piping design Sumber : www.slideshare.net

Relationship of Design Pressure Test Pressure PSV Set Point
design conditions without pressure relief and 3 Being isolated from any relieving device the most sever condition of pressure and temperature the piping could potentially see In responding to the three points above the first thing that needs to be addressed is establishing the piping system design pressure

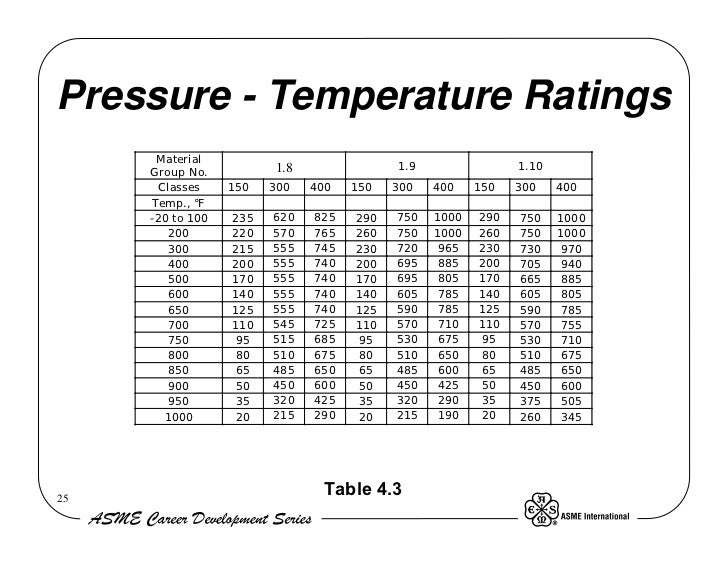

Simple Piping design Sumber : es.slideshare.net

Pipeline design consideration and standards PetroWiki
The fluid flow equations and formulas presented thus far enable the engineer to initiate the design of a piping or pipeline system where the pressure drop available governs the selection of pipe size In addition there may be velocity constraints that might dictate a larger pipe diameter

PDF Sustainability Assessment of Alternative Snow Sumber : www.researchgate.net

Design Pressure an overview ScienceDirect Topics
Design pressure for piping systems should be determined in accordance with ASME B31 3 with the following additions 1 Where the pressure is limited by a relieving device the design pressure should not be less than the pressure that will exist in the piping systems when the pressure relieving device starts to relieve or when the set pressure of the pressure relieving device whichever is the

Pressure Piping Design AJP Engineering Services Sumber : www.ajpengineering.ca

ASME B31 3 Design Pressure Little P Eng
10 07 2020 Design conditions in ASME B31 3 are specifically intended for pressure design The design pressure and temperature are the most severe coincident conditions defined as the conditions that result in the greatest pipe wall thickness or highest required pressure class or other component rating Design conditions are not intended to be a combination of the highest potential pressure and the

ROHR2 Pipestress Analysis Software ROHR2 Pipe Stress Sumber : www.rohr2.com

Pressure Piping Design ABSA the pressure equipment
ABSA the pressure equipment safety authority Head Office 9410 20th Avenue NW Edmonton Alberta T6N 0A4 Tel 780 437 9100 Fax 780 437 7787

Pressure Reducing System Exporter from Thane Sumber : www.pcianalytics.com

ASME B31 Pressure Piping Engineering ToolBox
B31 Code for pressure piping developed by American Society of Mechanical Engineers ASME covers Power Piping Fuel Gas Piping Process Piping Pipeline Transportation Systems for Liquid Hydrocarbons and Other Liquids Refrigeration Piping and Heat Transfer Components and Building Services Piping ASME B31 was earlier known as ANSI B31
